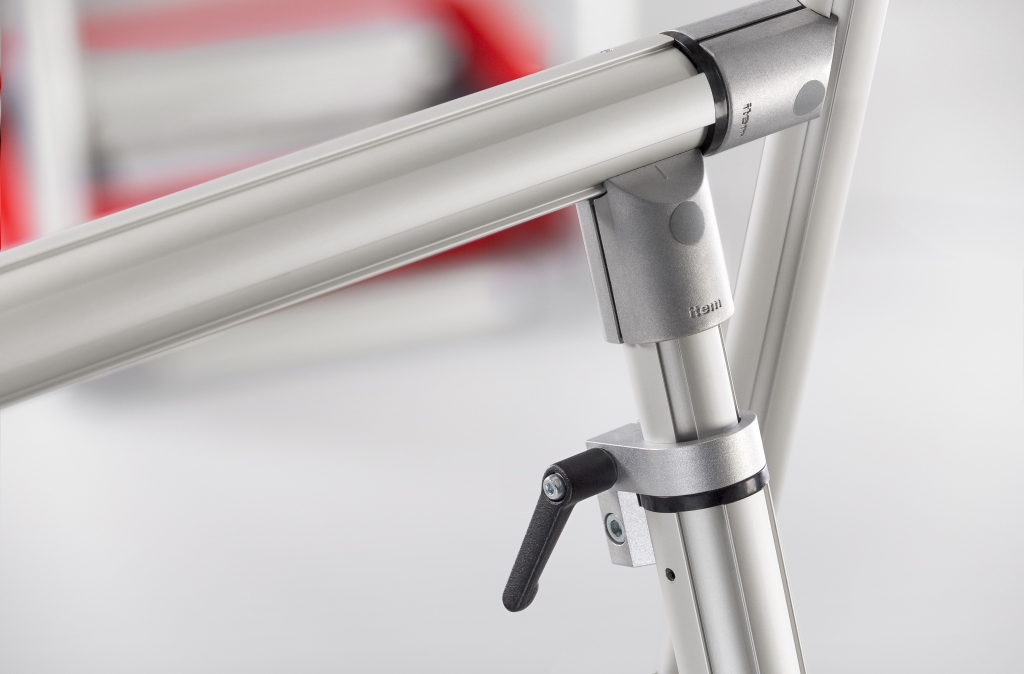

To create a pull-out telescopic solution, push Plain Bearing Sleeve D30/D20 ESD into the end face of a Profile Tube D30. The low-friction plastic ring ensures the Profile Tube D30 moves inside a Profile Tube D40/30. Plain Bearing Sleeve D40/D30 ESD (0.0.676.03) on the opposite end provides reliable guidance for the telescopic profile. Telescope Clamp D40/30 fixes the retractable Tube in place.
Please factor in the torque that a long lever element can generate in a construction.
F= 500 N
LPA= Length of external profile
LPA min= H+100 mm
LPI= Length of internal profile
LPI min= H+120 mm
