Special features:
item products are based on different modular dimensions and their associated system grooves.
Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.
The profiles in Line X feature a Line 8 system groove but have a particularly flat surface with
minimum curve radii that make them ideal for building sealed constructions.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
Attributes
Line
line 8
Property
bright zinc-plated
Delivery unit
1 set
Weight
m =
26
g
Details

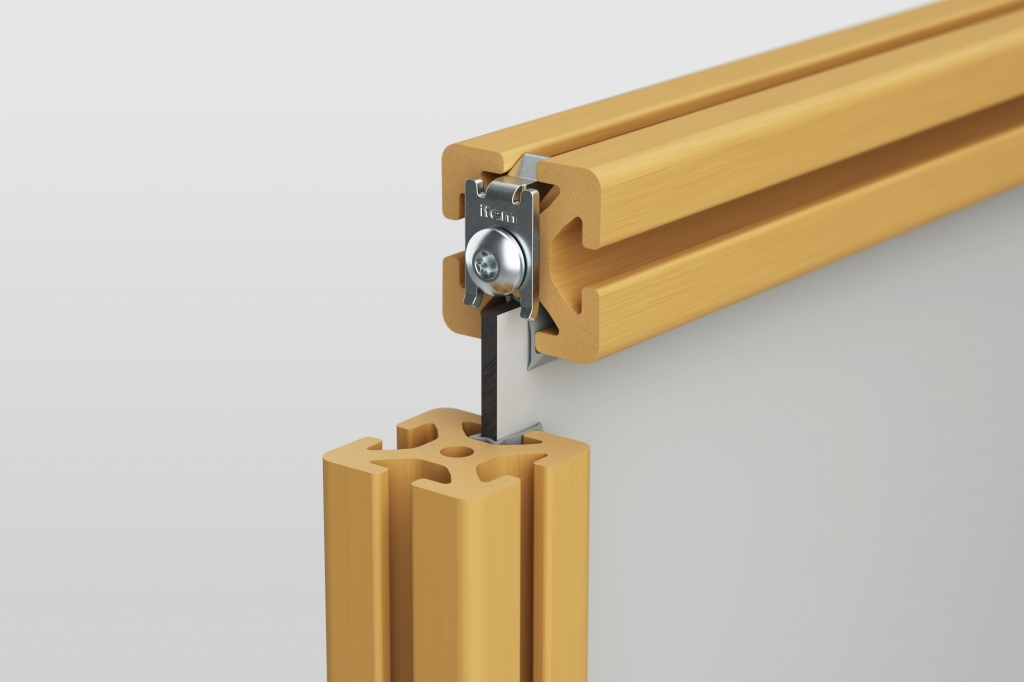

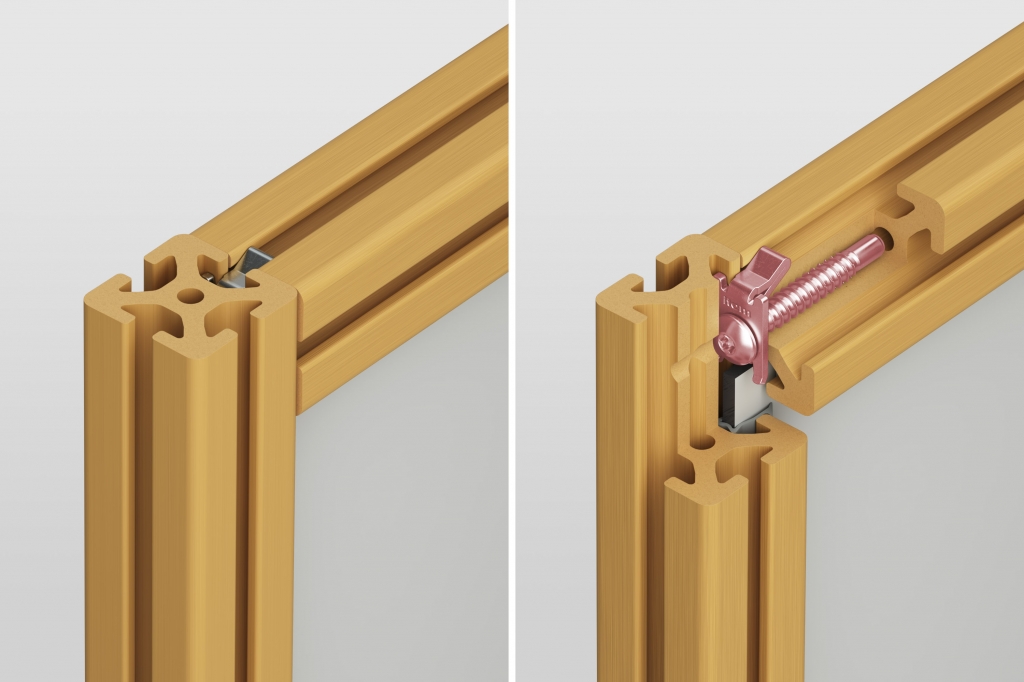

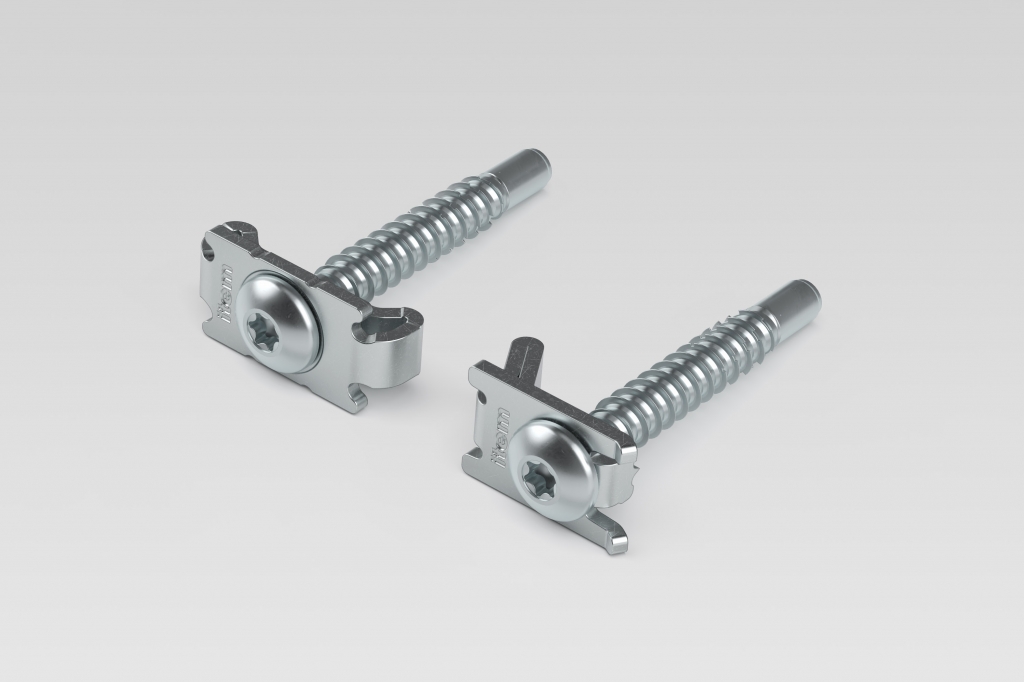

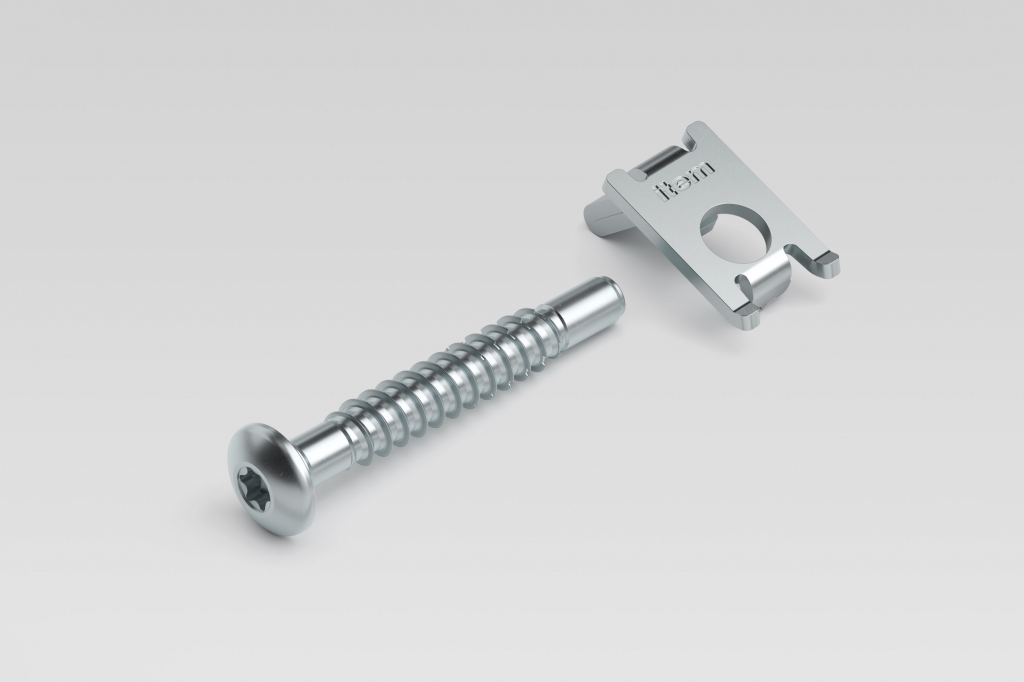

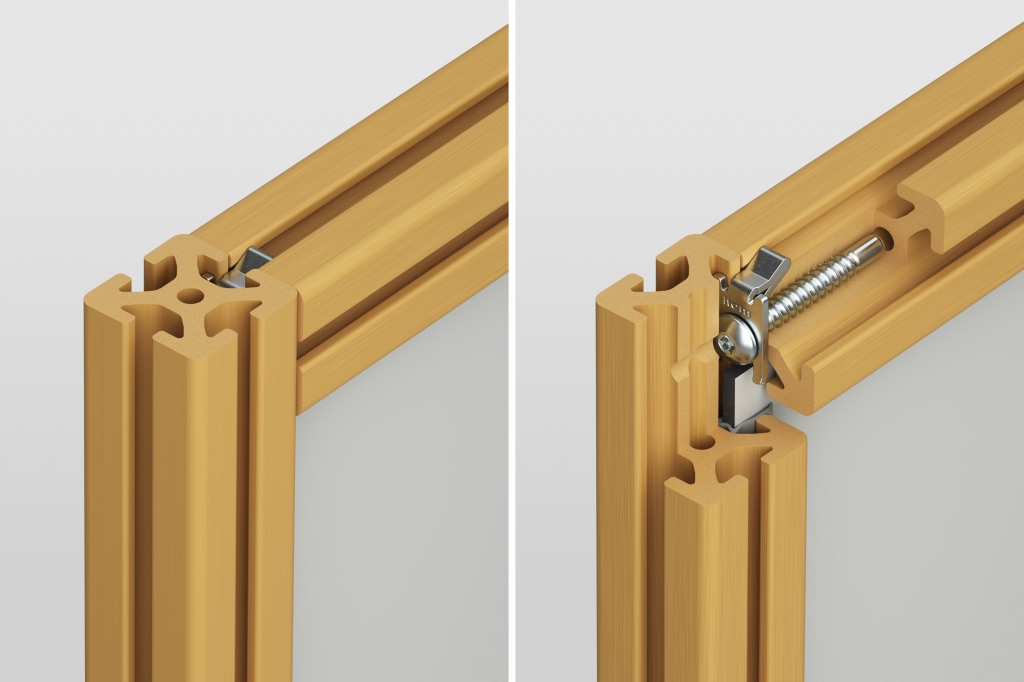

1 Standard connecting plate 8, one-sided, St, bright zinc-plated
1 Button-Head Screw KH 8x55, TX30, St, bright zinc-plated
1 Button-Head Screw KH 8x55, TX30, St, bright zinc-plated
Accessoires / Service
Profile KH 8 40x40, anthracite
Delivery unit
cut-off max. 6000 mm
cut-off max. 6000 mm
Article-No.
0.0.641.61
0.0.641.61
Profile Machining, Groove-Side Hole, 8, D7
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.026.96
0.0.026.96
Tools
Drilling Unit, Drilling Stand
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.465.88
0.0.465.88
Drilling Unit, Drilling Adapter Set 8
Delivery unit
1 set
1 set
Article-No.
0.0.465.89
0.0.465.89
Key with T-Handle TX30
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.647.93
0.0.647.93
Classifications
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
customs tariff number
73181568
