Pushbutton M22 1NO 1NC M12, Male Connector, A-coded
0.0.732.79

Pushbutton M22 1NO 1NC M12, Male Connector, A-coded

0.0.732.79

View CAD-Data Assign to comparison list Compare products https://product.item-china.cn/en/directlink/pro/73279
Special features:
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc.
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with.
Delivery unit
Scale limit
Price
1 set
≥1
on application

on application

More Product Information

  • Attributes
  • Details
  • Accessories
  • Downloads
  • Classification
Pushbutton M22 1NO 1NC M12, Male Connector, A-coded
0.0.732.79

Attributes

Delivery unit
1 set
Weight
m = 52 g
ESD-safe
No
Type designation
1NC+1NO
Protection class
IP65 / IP67
Cable length
1.5 m
Pushbutton M22 1NO 1NC M12, Male Connector, A-coded
0.0.732.79

Details

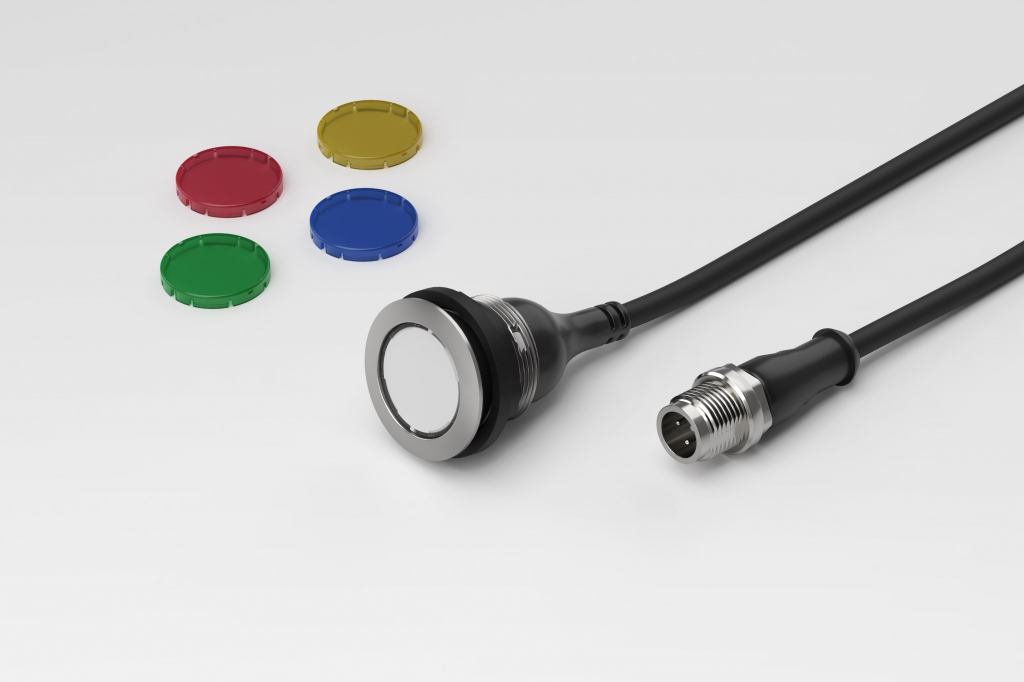

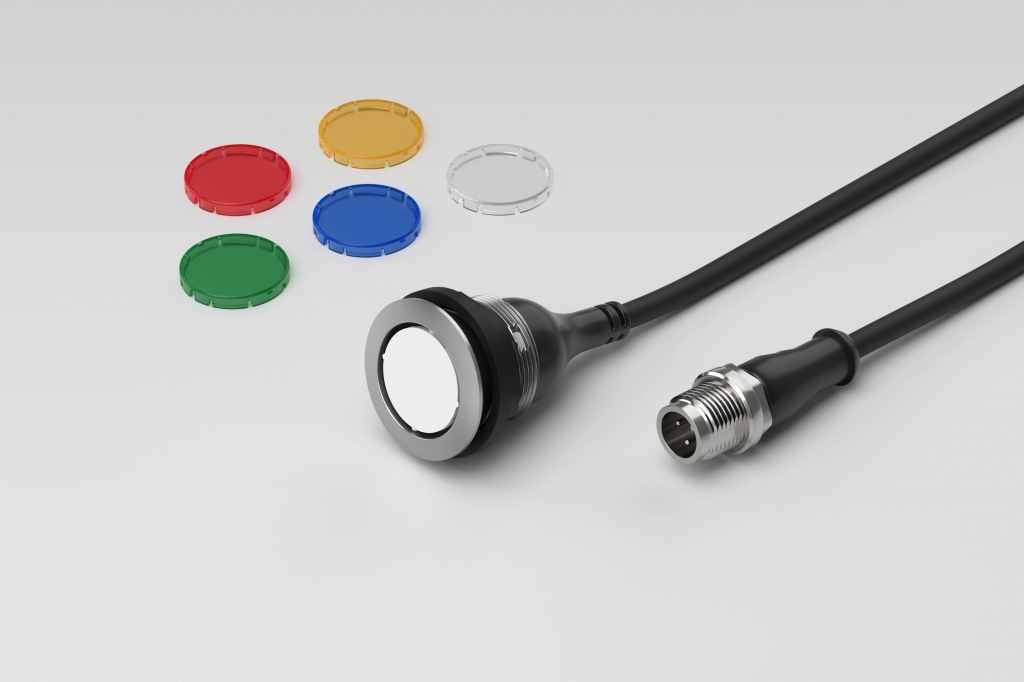

1 M22 pushbutton with cable
1 button cap, red, PA12
1 button cap, blue, PA12
1 button cap, yellow, PA12
1 button cap, green, PA12
1 button cap, clear, PA12
Pushbutton M22 1NO 1NC M12, Male Connector, A-coded is an industrial operating element for lights, devices and machinery. The button does not latch into position. It can be used as both a normally closed (NC) and a normally open (NO) contact.
The pushbutton, cable and M12 male connector are preassembled and ready to connect. This ensures assembly can be completed quickly and easily, with no wiring outlay. The coloured caps supplied can be used to help distinguish between several buttons with different functions.

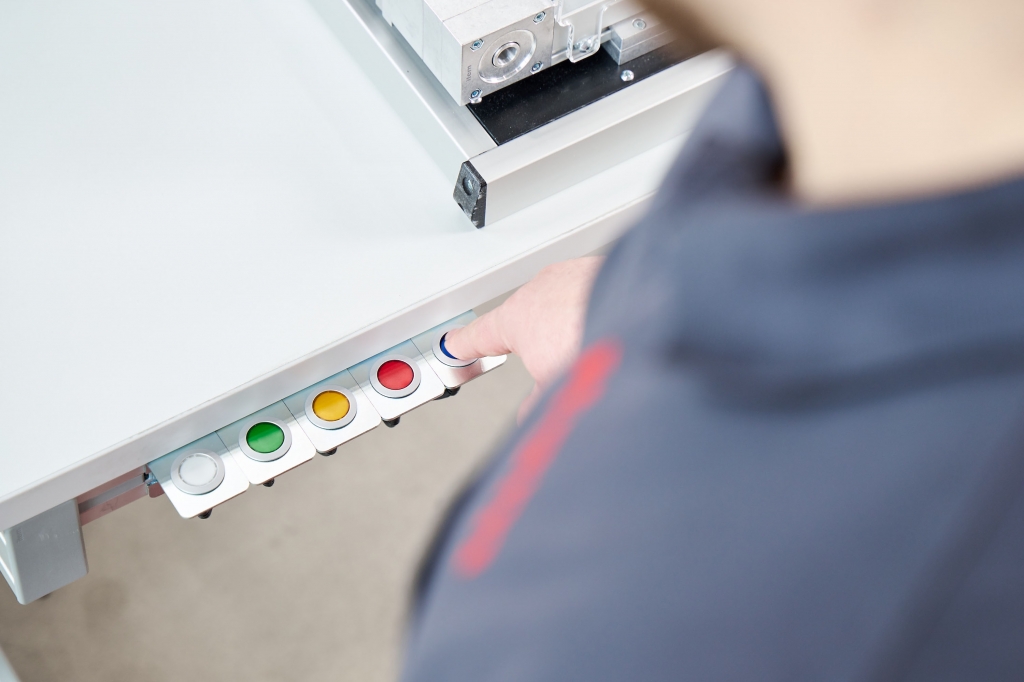

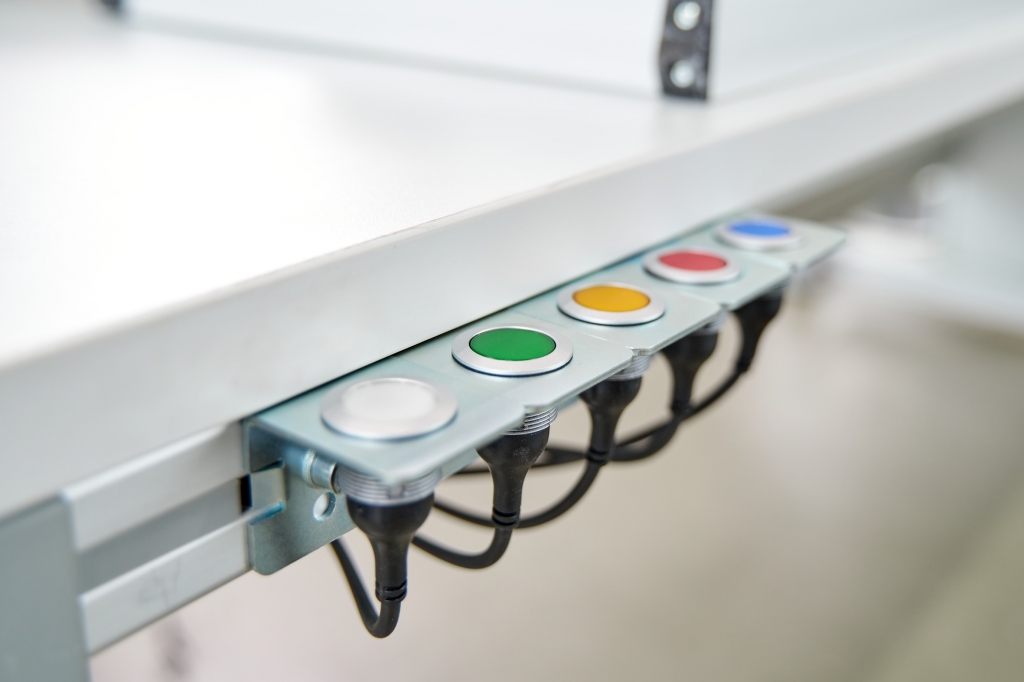

Mounting Set 8, Button/Switch M22 (0.0.732.80) can be used to fit Pushbutton M22 and Selector Switch M22 to profiles with a Line 8 groove. The operating element is fastened to the bracket plate on the reverse, using the threaded ring supplied.

Installation in panel elements and the Cover Profiles on cable conduits is also possible. Label Holder 22mm (0.0.714.20) is used as a cover with label.

Alternatively, by using an appropriate item Adapter, you can combine M22 operating elements with Mounting Boxes M45. These Mounting Boxes can be clipped directly into the integrated cable conduit on a Profile XMS or on item wall trunking.
The A-coded, 4-pin M12 male connector can be used to determine the switching behaviour. Depending on the pin switched, the operating element is either normally open or normally closed:
NO (normally open): The contact is open when the circuit is not activated. The circuit is closed when the switch is actuated.
NC (normally closed): The contact is closed when the circuit is not activated. The circuit is opened when the switch is actuated.
Show more
Pushbutton M22 1NO 1NC M12, Male Connector, A-coded
0.0.732.79

Accessoires / Service

Mounting Set 8, Button/Switch M22
Delivery unit
1 set
Article-No.
0.0.732.80

Downloads

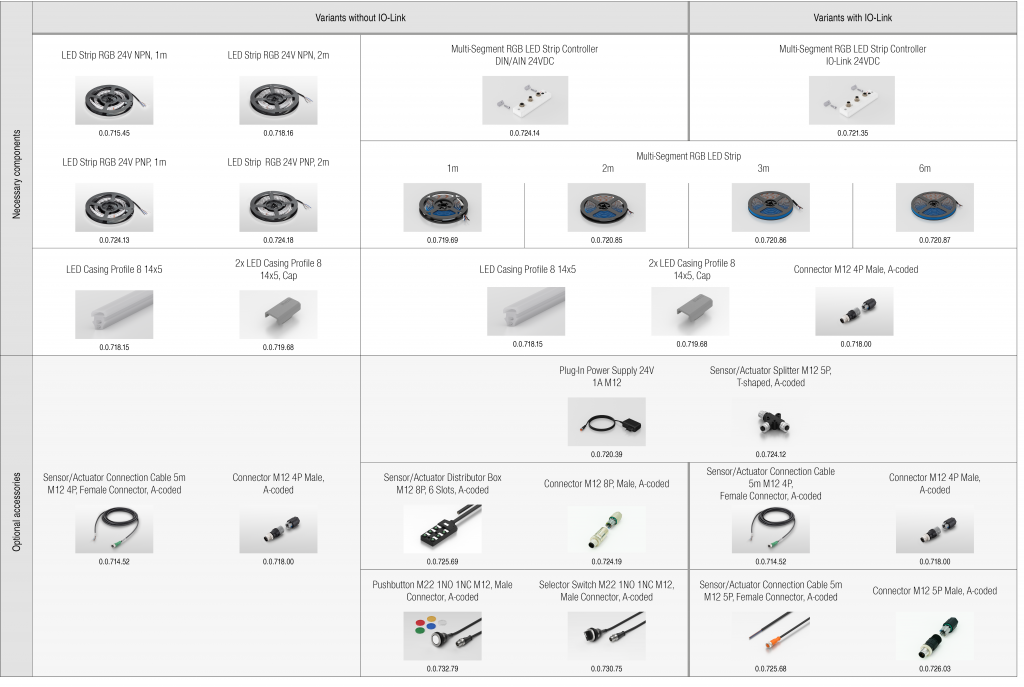

Component overview item signalling solution(3 MB)
Pushbutton M22 1NO 1NC M12, Male Connector, A-coded
0.0.732.79

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 11.0
27371228
eCl@ss 4.0
27371281
eCl@ss 4.1
27371281
eCl@ss 5.0
27371210
eCl@ss 5.1
27371210
eCl@ss 6.0.1
27371210
eCl@ss 7.1
27371228
eCl@ss 8.0
27371228
UNSPSC 7.0
39121506
UNSPSC 9.0
39121506
customs tariff number
85365080
