Table Column Set 8 E 100V - 240V
0.0.718.73

Table Column Set 8 E 100V - 240V

0.0.718.73

View CAD-Data Assign to comparison list Compare products https://product.item-china.cn/en/directlink/pro/71873
Special features:
item products are based on different modular dimensions and their associated system grooves. Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners. The profiles in Line X feature a Line 8 system groove but have a particularly flat surface with minimum curve radii that make them ideal for building sealed constructions.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc.
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with.
Delivery unit
Scale limit
Price
1 set
≥1
on application

on application

More Product Information

  • Attributes
  • Details
  • Accessories
  • Downloads
  • Classification
Table Column Set 8 E 100V - 240V
0.0.718.73

Attributes

Line
Work Bench System
line 8
Delivery unit
1 set
Weight
m = 68.102 kg
ESD-safe
No
cleanroom suitability
Yes
Supply voltage
230V~ 50/60 Hz
Torque
M = 140 Nm
Stroke max.
Hmax = 410 mm
Ambient temperature (during operation)
-5 °C ... +40 °C
Max. load-carrying capacity
F = 8000 N
Table Column Set 8 E 100V - 240V
0.0.718.73

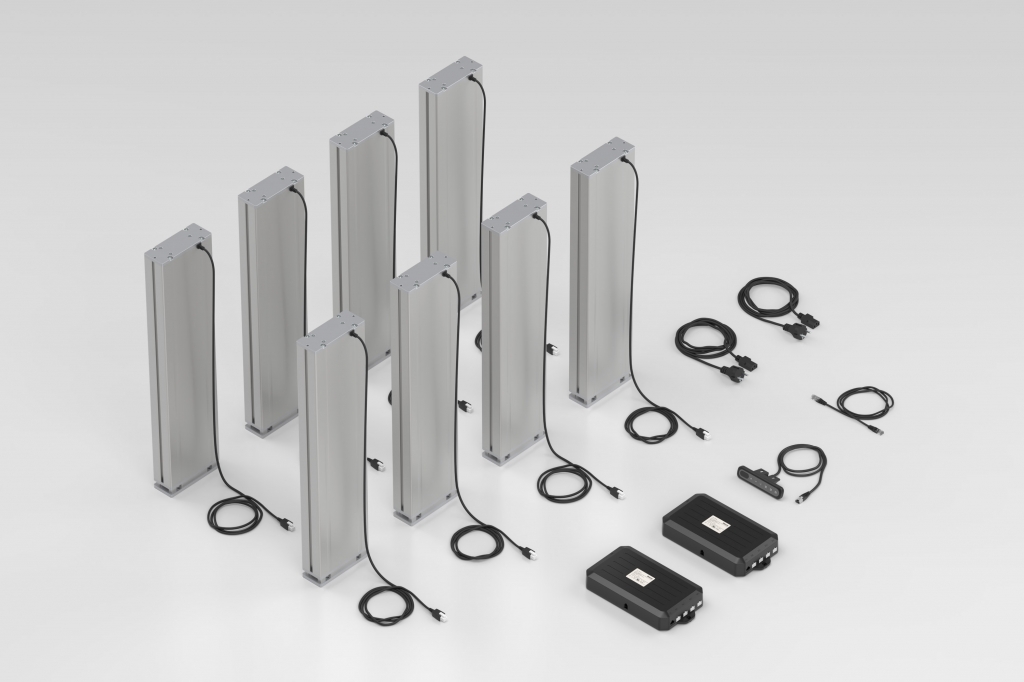

Details

8 Table Columns, Al, anodized, natural
1 Control panel
1 Control unit
1 Mains cable
1 Notes on Use and Installation
The Table Column Set 8 E 100V - 240V is the basis for electrically height-adjustable work benches. The eight powerful lifting columns enable the construction of individual workstations.
Height-adjustable table columns provide an ergonomic working position for users of different heights, as well as making it easy to switch between sitting and standing work.
Eight electrically synchronised columns can be used to raise and lower entire production lines that comprise up to seven benches and boast enormous load-carrying capacity.
The control panel with digital height display ensures users can select their desired working height precisely. Thanks to the memory function, three height positions can be stored on the controller and implemented on the bench automatically, at the touch of a button.
The control panel with digital height display ensures users can select their desired working height precisely. Thanks to the memory function, three height positions can be stored on the controller and implemented on the bench automatically, at the touch of a button.
Using the Cantilever Foot Set 8 (0.0.676.18), two item Table Columns suffice to design the base assembly of a height-adjustable work bench. With the Double Cantilever Foot Set 8 (0.0.676.19), two opposing table tops can be used on a single Table Column Set.
The Table-Top Support Set 8 520x100 (0.0.676.17) attaches the table top to two Item Table Columns of a work bench. The sturdy beams also serve to mount Profiles 8 as supporting struts to reinforce the table top.
When an odd number of table columns are used, Table-Top Support 8 520x100 (0.0.703.60) can be ordered individually.
The M10 threaded bores in the base plates can be used to connect any Adjustable Feet.
The M6 threaded bores in the mounting plates can be used in combination with Automatic-Fastening Sets 8 to connect the columns to Profiles 8 160x60 4N E.
Show more
Table Column Set 8 E 100V - 240V
0.0.718.73

Accessoires / Service

Fastening Set, Profile 8 240x40/2-Part
Delivery unit
1 set
Article-No.
0.0.716.38
Table-Top Support Set 8 520x100
Delivery unit
1 set
Article-No.
0.0.676.17
Cantilever Foot Set 8 160x60-790x90
Delivery unit
1 set
Article-No.
0.0.676.18
Profile 8 240x40 8N light, natural
Delivery unit
cut-off max. 6000 mm
Article-No.
0.0.629.44
Fastening Set Profile 8 240x40
Delivery unit
1 set
Article-No.
0.0.656.06
Table-Top Support 8 520x100
Delivery unit
1 set
Article-No.
0.0.703.60
Cantilever Foot 8 160x60 790x90
Delivery unit
1 set
Article-No.
0.0.703.61
Profile 8 240x40 8N180 light, natural
Delivery unit
cut-off max. 6000 mm
Article-No.
0.0.678.89
Cantilever Foot 8 160x60 M 790x90
Delivery unit
1 set
Article-No.
0.0.731.25

Downloads

Assembly instruction(2 MB)
Declaration of incorporation(2 MB)
Technical documentation (valid until 10/2025)(8 MB)
Table Column Set 8 E 100V - 240V
0.0.718.73

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 11.0
21100291
eCl@ss 4.0
21100201
eCl@ss 4.1
21100201
eCl@ss 5.0
21100201
eCl@ss 5.1
21100201
eCl@ss 6.0.1
21100290
eCl@ss 7.1
21100290
eCl@ss 8.0
21100290
UNSPSC260
56111902
UNSPSC 7.0
56111902
UNSPSC 9.0
56111902
customs tariff number
94039910
