Linear Unit GSF 6 60 TR 12x3
0.0.714.00

Attributes

Line
line 6
Delivery unit
1 pce.
ESD-safe
No
Status on delivery
Preassembled
Type designation
0.0.714.00
Efficiency
. = 0.4
Moment of Inertia, x-axis
Ix = 28.09 cm4
Moment of Inertia, y-axis
Iy = 43.46 cm4
Maximum force in direction z
Fz max = 75 N
Maximum force in direction y
Fy max = 100 N
Maximum moment around the x axis
Mx max = 1 Nm
Maximum moment around the y axis
My max = 5 Nm
Maximum moment around the z axis
Mz max = 6.5 Nm
Maximum operating load
Fx max = 250 N
max. drive torque
. = 1 Nm
Stroke
h = 3 mm/U
Safety clearance
smin = 10 mm
Stroke max.
Hmax = 2800 mm
Max. speed
Vmax = 0.03 m/s
Repeat accuracy
. = 0.5 mm
Total mass
m = m1 + H * m2
Basic mass (when stroke length = 0 mm)
m1 = 1.472 kg
Mass per mm of stroke
m2 = 3.388 g/mm
Linear Unit GSF 6 60 TR 12x3
0.0.714.00

Details

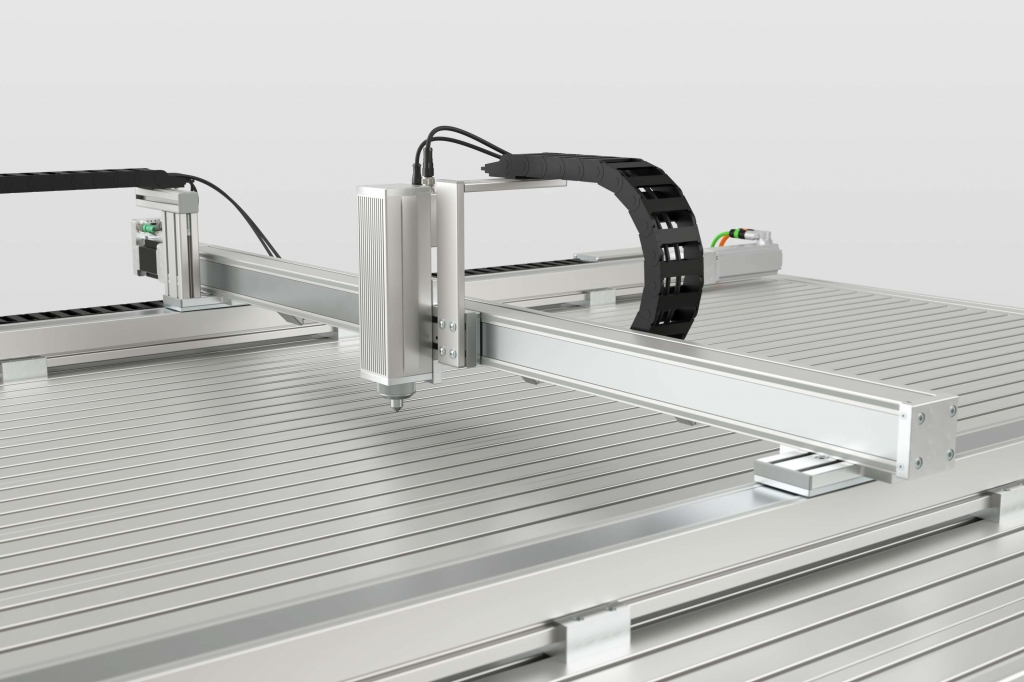

item Linear Unit GSF 6 60 TR 12x3 combines low-friction sliding guidance with a spindle drive that features a trapezoidal thread and a stroke of up to 2600 mm – all in the smallest possible installation space.
In applications with a long travel distance, travelling spindle supports keep everything running smoothly and precisely without sacrificing dynamics. The spindle lead of 3 mm per revolution gives the linear axis a high feed force without compromising on precision.
This compact, maintenance-free, all-in-one system is ideal for applications where space is limited.
Thanks to the travelling spindle supports, the threaded spindle runs exceptionally smoothly, even with long stroke lengths and high speeds. Linear Units GSF therefore support applications that require excellent precision.
Numerous Drive Sets, Gearboxes and Motors are available to suit the installation dimensions of just 60x60 mm. These plug-and-play solutions are used to connect up various drives in the desired arrangement.
Ball screw drives are ideal for use with stepper motors such as Integrated Motor ST NEMA24 -310-48-T1 (0.0.703.45).

Tip: Use item MotionDesigner® to calculate the perfect combination of Linear Unit, Motor and Controller for your transport task.
The total length (L) of the Linear Unit consists of the travel distance (H), the required safety clearances (S1, S2) and the thickness of the bearing set at each end.
Show more
Linear Unit GSF 6 60 TR 12x3
0.0.714.00

Accessoires / Service

Parallel Drive Set 6 60 D12-1 SE 60
Delivery unit
1 set
Article-No.
0.0.708.27
Drive Set 6 60 D30/D12
Delivery unit
1 set
Article-No.
0.0.704.53
Drive Set 6 60 D30/D12 SE 60
Delivery unit
1 set
Article-No.
0.0.692.55
Drive Set 6 60 D30/D12 SE 40
Delivery unit
1 set
Article-No.
0.0.692.53
Proximity Switch KLE 6 60x60 - 1NO
Delivery unit
1 pce.
Article-No.
0.0.609.31
Proximity Switch KLE 6 60x60 - 1NC
Delivery unit
1 pce.
Article-No.
0.0.604.41
Cover Profile 6 LE, grey similar to RAL 7042
Delivery unit
1 pce., length 2000 mm
Article-No.
0.0.603.88
Profile Fastening Set 6/8 80x60
Delivery unit
1 set
Article-No.
0.0.708.20
Parallel Drive Set 6 60 D12-1
Delivery unit
1 set
Article-No.
0.0.708.42
Hand-Wheel D60 D12
Delivery unit
1 set
Article-No.
0.0.714.12
Transverse Carriage Plate 6 119x119
Delivery unit
1 set
Article-No.
0.0.714.07
Drive Set 6 60 D30/D12 NEMA 24
Delivery unit
1 set
Article-No.
0.0.713.17

Downloads

Assembly instruction(4 MB)
Linear Unit GSF 6 60 TR 12x3
0.0.714.00

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 11.0
23301702
eCl@ss 4.0
36400806
eCl@ss 4.1
36400701
eCl@ss 5.0
23329090
eCl@ss 5.1
23329090
eCl@ss 6.0.1
23301702
eCl@ss 7.1
23301702
eCl@ss 8.0
23301702
UNSPSC260
26111506
UNSPSC 7.0
26111506
UNSPSC 9.0
26111506
customs tariff number
84879090
