Robot Mounting Plate 8 160x160
0.0.709.26

Attributes

Line
line 8
Material
Al
Delivery unit
1 pce.
Weight
m = 961 g
ESD-safe
Yes
Robot Mounting Plate 8 160x160
0.0.709.26

Details

Find the right Mounting Plate for your model of cobot.

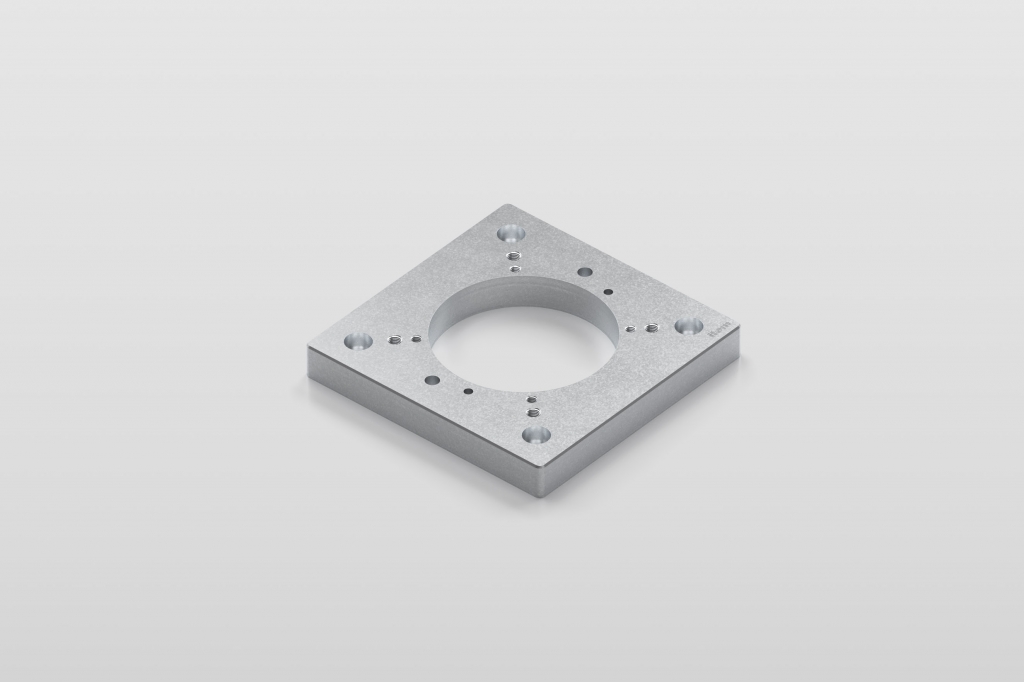

Working together! The item Mounting Plates 8 are perfect for integrating collaborative robots (cobots) into your working environment. Made of high-strength aluminium, the plates feature a pattern of holes for mounting on profiles and frames and come in versions that are predrilled for attaching widely used cobots and versions for custom machining.
Robot Mounting Plate 8 160x160 is prepared for the UR3e and UR5e cobots from Universal Robots and Fanuc CRX-5iA. The larger UR10e and UR16e models from Universal Robots, the CRX-10iA, CRX-10iA/L and CRX-20iA/L from Fanuc and the TM5, TM12, TM14, TM16 and TM20 models from Omron can be securely mounted on Robot Mounting Plate 8 200x200. The large central hole can be used for feeding through cables, if required.
Alternatively, you can drill your own custom pattern of holes in Universal Mounting Plates 8 160x160 and 200x200. This means you can also integrate other cobot and mechanical engineering applications into a bespoke solution.
Groove Plate X 8 40 (0.0.705.30) and Installation Column 8 160x160 K76 (0.0.663.39) offer ideal fastening surfaces. Detailed information on the appropriate fixings for various installation scenarios can be found on the product page for the Mounting Plates in the item Online Shop.
The pattern of holes on Robot Mounting Plate 8 160x160 is designed for cobot models such as the Universal Robots UR3e, UR5e  and Fanuc CRX-5iA. Please also take note of the cross-section of the Mounting Plate when selecting fixings. The four holes on the outside, which are in the modular dimension of Line 8, are used to fasten the plates to a profile frame.
Show more
Robot Mounting Plate 8 160x160
0.0.709.26

Accessoires / Service

Installation Column Profile 8 160x160 K76, natural
Delivery unit
cut-off max. 6000 mm
Article-No.
0.0.663.39
Hexagon Socket Head Cap Screw DIN 912 M8x20, bright zinc-plated
Delivery unit
1 pce.
Article-No.
8.0.004.41
Hexagon Socket Head Cap Screw DIN 912 M8x25, bright zinc-plated
Delivery unit
1 pce.
Article-No.
0.0.610.71
T-Slot Nut V 8 St M8, bright zinc-plated
Delivery unit
1 pce.
Article-No.
0.0.480.48

Downloads

Technical documentation(2 MB)
ESD Product Qualification(378 KB)

Videos

Robot Mounting Plate 8 160x160
0.0.709.26

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 11.0
23360291
eCl@ss 4.0
22041424
eCl@ss 4.1
22041424
eCl@ss 5.0
23250311
eCl@ss 5.1
23250311
eCl@ss 6.0.1
23250311
eCl@ss 7.1
23360290
eCl@ss 8.0
23360290
UNSPSC 7.0
31162503
UNSPSC 9.0
31162503
customs tariff number
76169990
