Special features:
item products are based on different modular dimensions and their associated system grooves.
Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.
The profiles in Line X feature a Line 8 system groove but have a particularly flat surface with
minimum curve radii that make them ideal for building sealed constructions.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.
Attributes
Line
line 8
Delivery unit
1 set
Weight
m =
97
g
ESD-safe
No

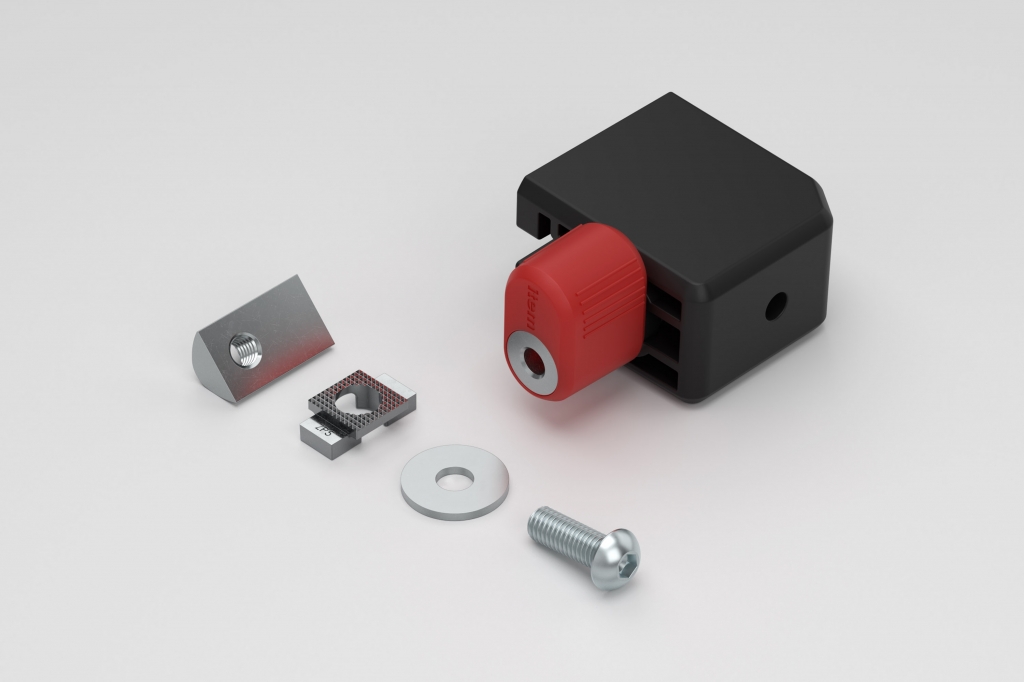

Details
1 Quick Coupler 8, Release Unit 40x28, PA-GB, black with stainless steel bolt
1 T-Slot Nut 8 St M6, bright zinc-plated
1 Button-Head Screw ISO 7380-M6x18, St, bright zinc-plated
1 Washer ISO 7093-1-6-200 HV, St, bright zinc-plated
1 locating lug, die-cast zinc, bright zinc-plated
1 T-Slot Nut 8 St M6, bright zinc-plated
1 Button-Head Screw ISO 7380-M6x18, St, bright zinc-plated
1 Washer ISO 7093-1-6-200 HV, St, bright zinc-plated
1 locating lug, die-cast zinc, bright zinc-plated
Accessoires / Service
Guide Wedge 8 40x40 30°, Double-Sided
Delivery unit
1 set
1 set
Article-No.
0.0.723.61
0.0.723.61
Guide Wedge 8 40x40 30°, Single-Sided
Delivery unit
1 set
1 set
Article-No.
0.0.723.62
0.0.723.62
Quick Coupler 8, Receiver 40x28
Delivery unit
1 set
1 set
Article-No.
0.0.730.06
0.0.730.06
End Cap D6/D5-12
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.682.45
0.0.682.45
Manual Trigger D30
Delivery unit
1 set
1 set
Article-No.
0.0.691.93
0.0.691.93
Cable Barrel Clamp D7/D2-7 M4
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.692.48
0.0.692.48
Adjusting Screw D5/D3-M6x20
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.682.42
0.0.682.42
Tools
Ball-Headed Key 2 A/F
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.473.78
0.0.473.78
Classifications
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 11.0
23360290
eCl@ss 4.0
22041424
eCl@ss 4.1
22041424
eCl@ss 5.0
23250311
eCl@ss 5.1
23250311
eCl@ss 6.0.1
23250311
eCl@ss 7.1
23360290
eCl@ss 8.0
23360290
UNSPSC 7.0
31162503
UNSPSC 9.0
31162503
customs tariff number
39269097
