Special features:
item products are based on different modular dimensions and their associated system grooves.
Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.
The profiles in Line X feature a Line 8 system groove but have a particularly flat surface with
minimum curve radii that make them ideal for building sealed constructions.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.

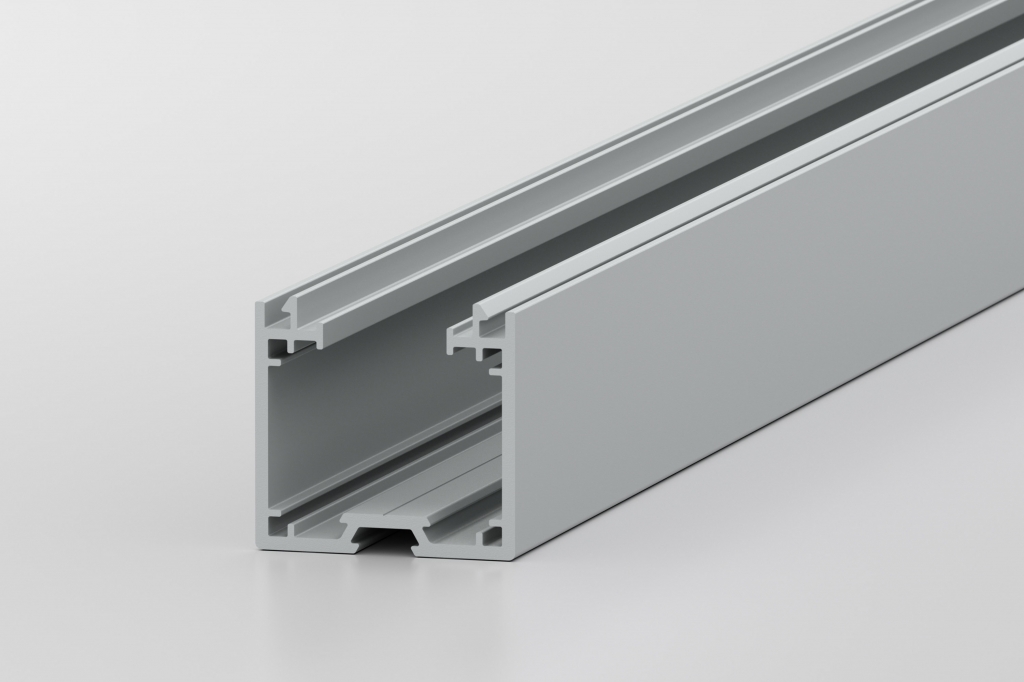

Attributes
Line
line X
Material
PVC
Delivery unit
1 pce., length 3000 mm
Weight, spec. Length
m =
411
g/m
Details
Accessoires / Service
Conduit Cap 40x40 K, grey similar to RAL 7042
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.633.50
0.0.633.50
Clip 8, Conduit Profile K, grey similar to RAL 7042
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.643.85
0.0.643.85
Lid Profile D40 K, grey similar to RAL 7042
Delivery unit
cut-off max. 3000 mm
cut-off max. 3000 mm
Article-No.
0.0.647.85
0.0.647.85
Catch 40, Conduit Profile K, grey similar to RAL 7042
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.648.08
0.0.648.08
Profile Saw Cut, Small Cross-Sections
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.026.30
0.0.026.30
Downloads
Datasheet(2 MB)
Technical documentation(267 KB)
Classifications
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 11.0
27400704
eCl@ss 4.0
27140603
eCl@ss 4.1
27140603
eCl@ss 5.0
27140603
eCl@ss 5.1
27140603
eCl@ss 6.0.1
27400704
eCl@ss 7.1
27400704
eCl@ss 8.0
27400704
UNSPSC 7.0
30102315
UNSPSC 9.0
30102315
customs tariff number
39259020
