Special features:
item products are based on different modular dimensions and their associated system grooves.
Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners.
The profiles in Line X feature a Line 8 system groove but have a particularly flat surface with
minimum curve radii that make them ideal for building sealed constructions.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium.
EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components.
These include batteries, etc.
All substances are registered according to the REACH regulation.
REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that users
have accurate information on the type and properties of operating materials, lubricants, etc.
that they might come into contact with.

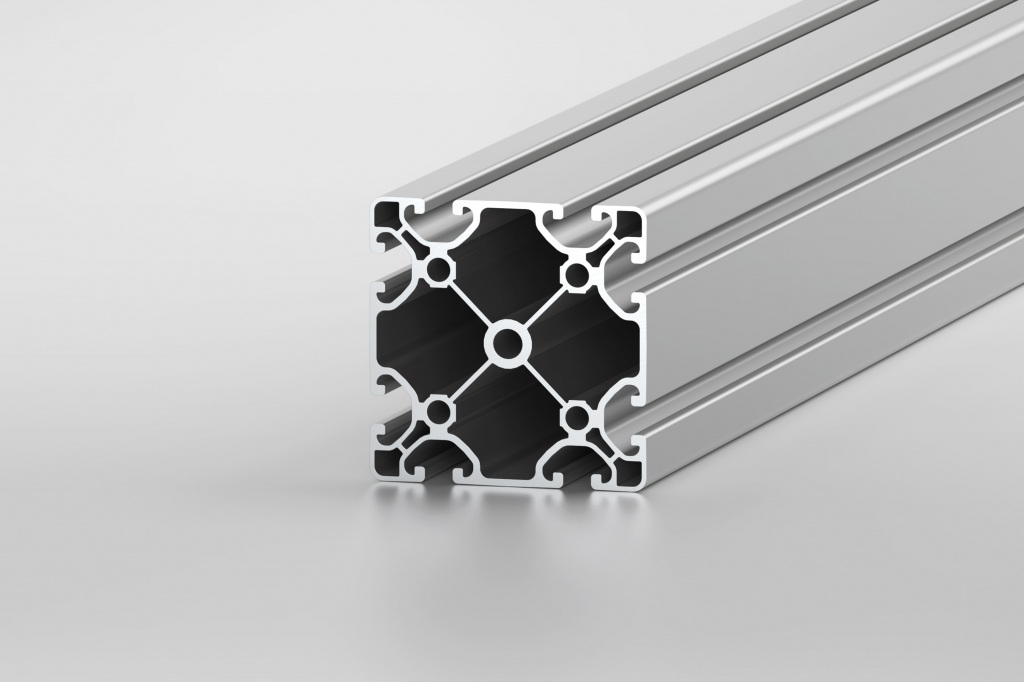

Attributes
Line
line 8
Material
Al, anodized
Delivery unit
1 pce., length 6000 mm
Weight, spec. Length
m =
4.01
kg/m
Details
Accessoires / Service
Cap 8 80x80, black
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.026.37
0.0.026.37
Cap 8 80x80, grey similar to RAL 7042
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.627.20
0.0.627.20
Cap 8 80x80 Zn, black
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.427.13
0.0.427.13
Profile Saw Cut, Medium Cross-Sections
Delivery unit
1 pce.
1 pce.
Article-No.
0.0.026.66
0.0.026.66
Downloads
Technical documentationTechnical documentation(1 MB)
Chemical resistance of aluminium(376 KB)
ESD Product Qualification(333 KB)
Deflection calculator
Load 1
Deflection f1x:
0 mm
Bending stress σ1x:
0 N/mm²
Warning! The bending stress exceeds the yield strength of the material.
Deflection f1y:
0 mm
Bending stress σ1y:
0 N/mm²
Warning! The bending stress exceeds the yield strength of the material.
Load 2
Deflection f2x:
0 mm
Bending stress σ2x:
0 N/mm²
Warning! The bending stress exceeds the yield strength of the material.
Deflection f2y incidental:
0 mm
Bending stress σ2y:
0 N/mm²
Warning! The bending stress exceeds the yield strength of the material.
Load 3
Deflection f3x:
0 mm
Bending stress σ3x:
0 N/mm²
Warning! The bending stress exceeds the yield strength of the material.
Deflection f3y incidental:
0 mm
Bending stress σ3y:
0 N/mm²
Warning! The bending stress exceeds the yield strength of the material.
Classifications
Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 11.0
23360101
eCl@ss 4.0
35020106
eCl@ss 4.1
35020106
eCl@ss 5.0
35020190
eCl@ss 5.1
35020190
eCl@ss 6.0.1
23360101
eCl@ss 7.1
35020190
eCl@ss 8.0
35020190
UNSPSC 7.0
30102306
UNSPSC 9.0
30102306
customs tariff number
76042100
