Stacking Guide 8 St 80x40-30°
0.0.726.91

Stacking Guide 8 St 80x40-30°

0.0.726.91

View CAD-Data Assign to comparison list Compare products https://product.item-china.cn/en/directlink/pro/72691
Special features:
item products are based on different modular dimensions and their associated system grooves. Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners. The profiles in Line X feature a Line 8 system groove but have a particularly flat surface with minimum curve radii that make them ideal for building sealed constructions.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc.
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with.
Delivery unit
Scale limit
Price
1 set
≥1
on application

on application

More Product Information

  • Attributes
  • Details
  • Tools
  • Downloads
  • Classification
Stacking Guide 8 St 80x40-30°
0.0.726.91

Attributes

Line
line 8
Delivery unit
1 set
Weight
m = 256 g
ESD-safe
Yes
Stacking Guide 8 St 80x40-30°
0.0.726.91

Details

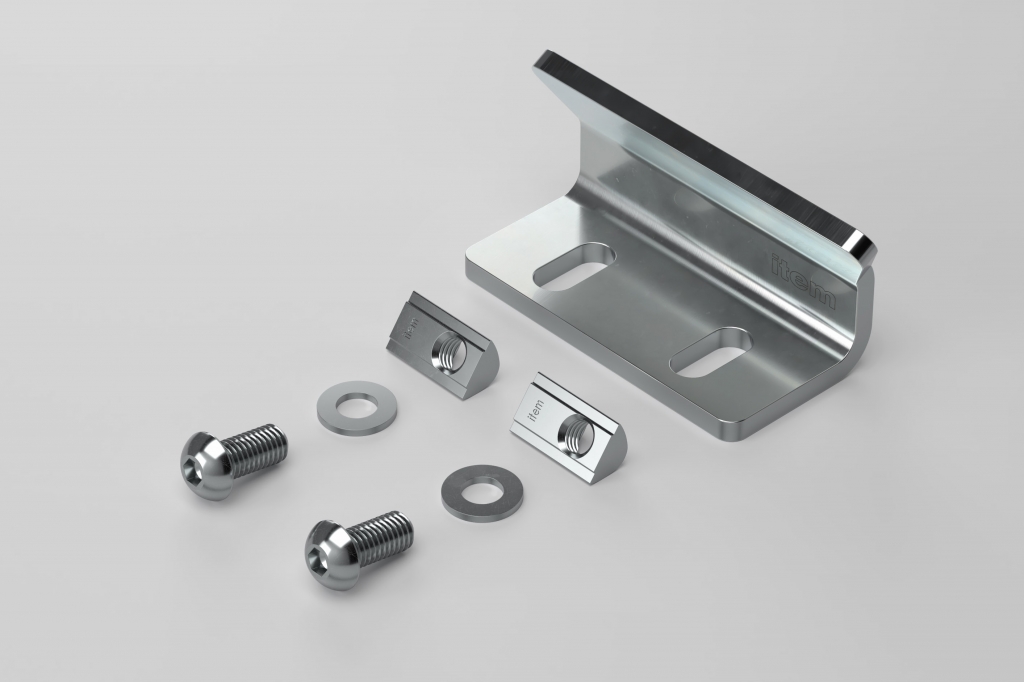

1 Sheet material, St, bright zinc-plated
2 Button-Head Screws ISO 7380-M8x18, St, bright zinc-plated
2 washers ISO 7089 - 8 - 200 HV, bright zinc-plated
2 T-Slot Nuts V 8 St M8, bright zinc-plated

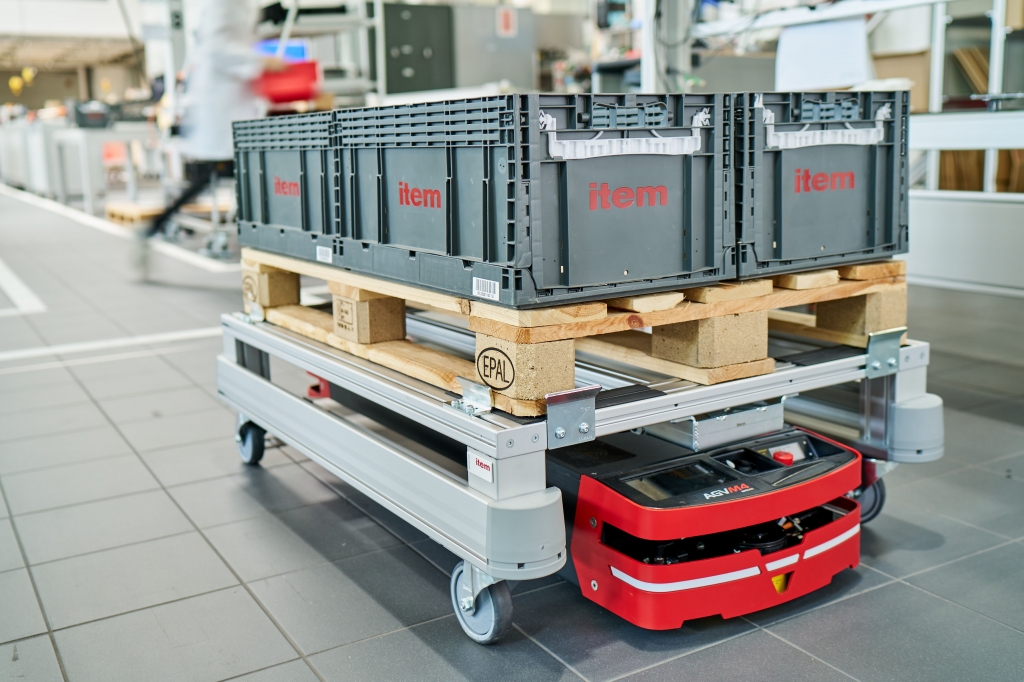

Stacking Guide 8 St 80x40-30° from item makes it easier to set down and transport containers or pallets on carriers. The robust centring aid ensures goods find the right position when being lowered into place and holds them securely.

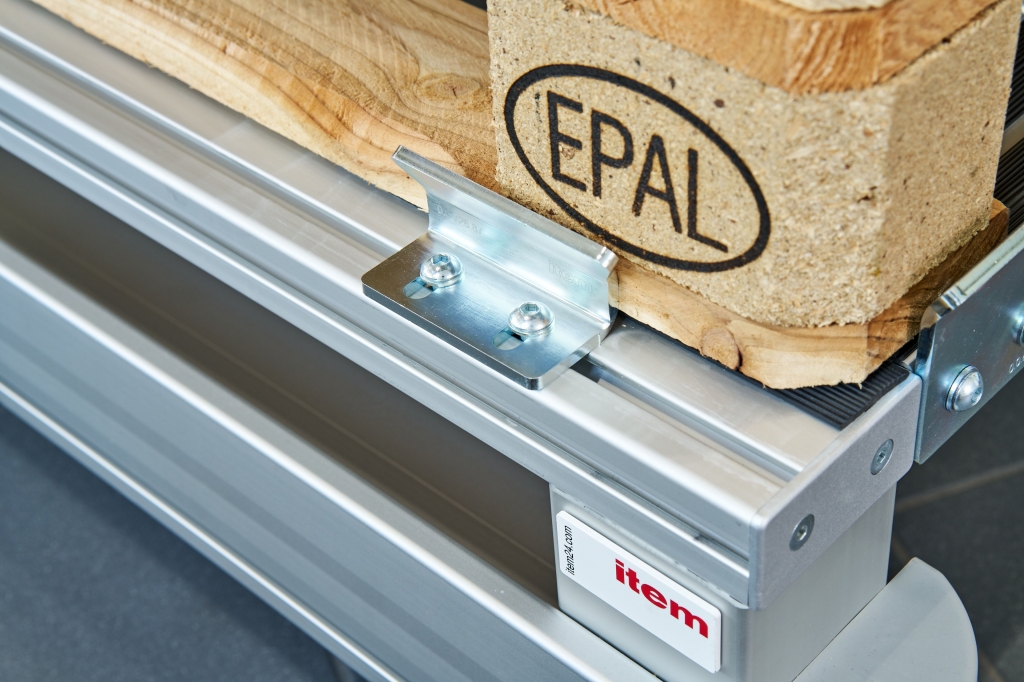

Stacking Guide 8 St 80x40-30° is fastened to the Line 8 groove on the top of the profile frame. This ensures the contour of the frame is unaffected. The integrated slots ensure it can be precisely aligned to suit the goods being moved.
Stacking Guide 8 St 80x40-30° can be fastened to a Profile 8 80x40, for example. The inside section of the profile functions as the storage surface for europallets and inherently stable packages. The Stacking Guide can also be used to guide goods along a groove.
 item Stacking Guides are bent to a 30° angle and even out positioning errors as objects are set down. Different variants can be used together in applications.
Show more
Stacking Guide 8 St 80x40-30°
0.0.726.91

Tools

Key with T-Handle 5 A/F
Delivery unit
1 pce.
Article-No.
0.0.026.29
L-Key 5 A/F
Delivery unit
1 pce.
Article-No.
0.0.026.89

Downloads

ESD Product Qualification(377 KB)
Stacking Guide 8 St 80x40-30°
0.0.726.91

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 11.0
36129090
eCl@ss 4.0
36123304
eCl@ss 4.1
36123304
eCl@ss 5.0
36129290
eCl@ss 5.1
36129290
eCl@ss 6.0.1
36129290
eCl@ss 7.1
36129290
eCl@ss 8.0
36129290
UNSPSC 7.0
31341705
UNSPSC 9.0
30102504
customs tariff number
73269098
