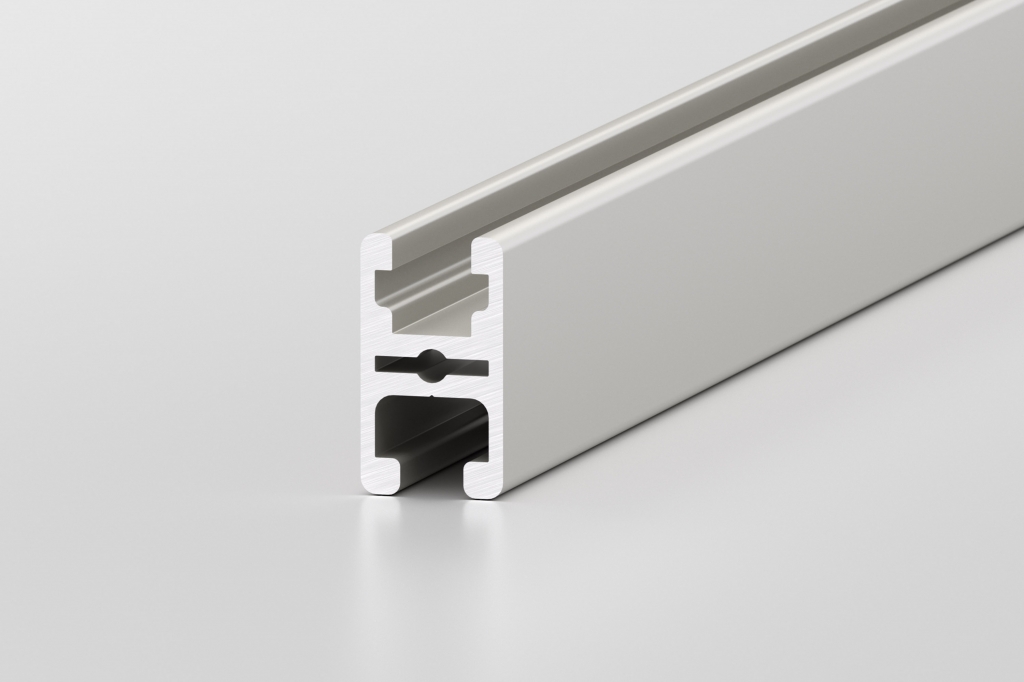

Clamp Profile 8 32x18, natural
0.0.452.24

Attributes

Line
line 8
Material
Al, anodized
Delivery unit
1 pce., length 3000 mm
Weight, spec. Length
m = 0.67 kg/m
ESD-safe
No
Length, rated
L = 3000 mm
Cross-sectional area
A = 2.49 cm2
Moment of Inertia, x-axis
Ix = 1.88 cm4
Moment of Inertia, y-axis
Iy = 1.10 cm4
Moment of Inertia, torsional
It = 0.23 cm4
Resistance Moment, x-axis
Wx = 1.16 cm3
Resistance Moment, y-axis
Wy = 1.23 cm3
Clamp Profile 8 32x18, natural
0.0.452.24

Details

Particularly suitable for constructing light guards and enclosures, sliding doors and other panelling structures.
The panel element is secured in the groove by a Clamp Spring.
Clamp Profile 8 32x18:
The panel element is held in a special groove of the profile with the help of Clamping Springs.
This increases the resistance against the enclosed panel being pressed out. This resistance depends on the number of Clamping Springs used.
Instead of Clamping Spring 8, a Lip Seal 8 can also be used for securing inherently stable panel elements.
Clamp-Profile Fastening Set 8 32x18 ensures a correctly positioned corner connection for the profiles.
Clamp-Profile Fastening Set 8 32x18 ensures a correctly positioned corner connection for the profiles.
The number of Clamping Springs required depends on the load, the inherent stability and the size of the panel element.
10 mm thick panel elements can be fitted into the groove without using Clamping Springs.
Folding-Door Hinge Al for Clamp Profile 8 32x18 is used to link together separate segments to create space-saving folding doors. Thanks to the Hinges, the moving elements fold up in a concertina formation.
Show more
Clamp Profile 8 32x18, natural
0.0.452.24

Accessoires / Service

Clip 8 St, bright zinc-plated
Delivery unit
1 pce.
Article-No.
0.0.428.97
Corner-Fastening Set Clamp-Profile 8 32x18
Delivery unit
1 set
Article-No.
0.0.494.73
Roller for Corner-Fastener 8 32x18
Delivery unit
1 set
Article-No.
0.0.494.74
Sliding-Door Guide Profile 8 40x10, natural
Delivery unit
cut-off max. 3000 mm
Article-No.
0.0.495.13
Hinge Al light, Pin Set D6
Delivery unit
1 set
Article-No.
0.0.621.16
Hinge Leaf Profile V 8 z 18 light, natural
Delivery unit
cut-off max. 3000 mm
Article-No.
0.0.662.40
Hinge 8 Al for Clamp Profile 8 32x18
Delivery unit
1 set
Article-No.
0.0.665.14
Folding-Door Hinge 8 Al for Clamp Profile 8 32x18
Delivery unit
1 set
Article-No.
0.0.666.92
Clamping Spring 8, stainless
Delivery unit
1 pce.
Article-No.
0.0.406.21
Clamp-Profile Fastening Set 8 32x18
Delivery unit
1 set
Article-No.
0.0.404.09
Sliding-Door Guide Set 8/8
Delivery unit
1 set
Article-No.
0.0.404.87
Cap 8 32x18, black
Delivery unit
1 pce.
Article-No.
0.0.388.87
Profile Saw Cut, Small Cross-Sections
Delivery unit
1 pce.
Article-No.
0.0.026.30
Profile Machining, Groove-Side Hole, 8, D7
Delivery unit
1 pce.
Article-No.
0.0.026.96
Profile Machining, End-Face Thread, MX x 7X
Delivery unit
1 pce.
Article-No.
0.0.722.96
