Flush Bolt 40, Strike Plate
0.0.728.91

Flush Bolt 40, Strike Plate

0.0.728.91

View CAD-Data Assign to comparison list Compare products https://product.item-china.cn/en/directlink/pro/72891
Special features:
item products are based on different modular dimensions and their associated system grooves. Profiles from Lines 5, 6, 8, 10 and 12 each need corresponding sizes of fasteners. The profiles in Line X feature a Line 8 system groove but have a particularly flat surface with minimum curve radii that make them ideal for building sealed constructions.
Components that are RoHS-compliant contain no dangerous substances such as lead or cadmium. EC Directive 2002/95/EC (RoHS 1) restricts the use of certain substances in electronic devices and components. These include batteries, etc.
All substances are registered according to the REACH regulation. REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) ensures that users have accurate information on the type and properties of operating materials, lubricants, etc. that they might come into contact with.
Delivery unit
Scale limit
Price
1 set
≥1
on application

on application

More Product Information

  • Attributes
  • Details
  • Accessories
  • Service
  • Downloads
  • Classification
Flush Bolt 40, Strike Plate
0.0.728.91

Attributes

Line
line 8
Delivery unit
1 set
Weight
m = 42 g
ESD-safe
No
Flush Bolt 40, Strike Plate
0.0.728.91

Details

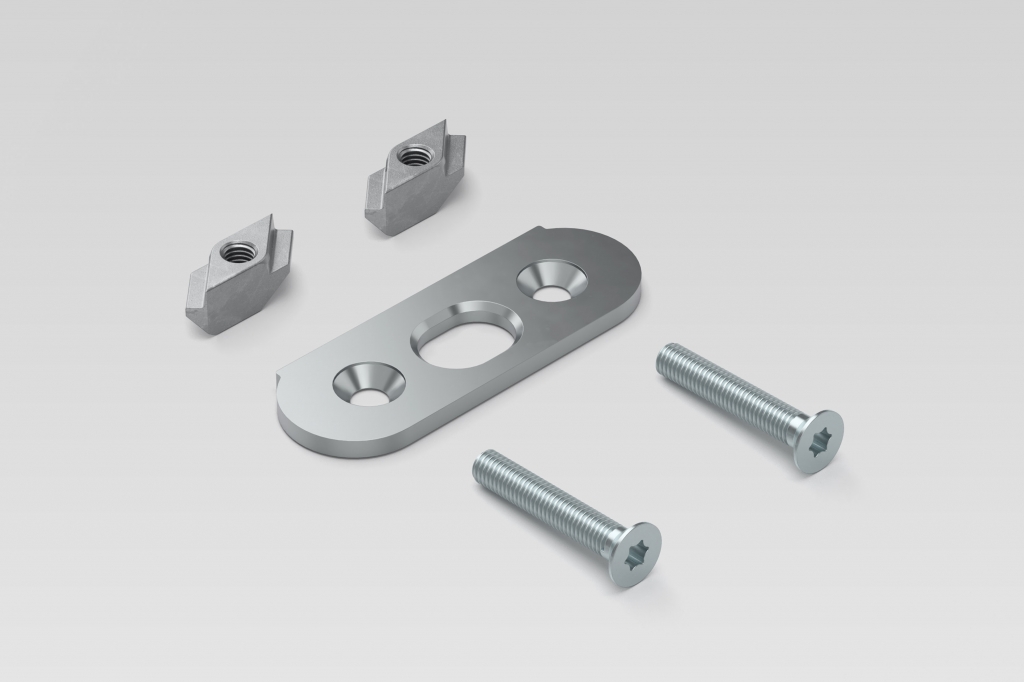

1 strike plate 62x22x3, flush bolt
2 T-Slot Nuts 8 Zn M5
2 Countersunk Screws ISO 14581-M5x30 TX25, stainless
Flush Bolt 40, Strike Plate is the top locking element for item Flush Bolt 40 (0.0.728.27). A Round Bar D10 M10 (0.0.728.94) clips into the opening to securely anchor an inactive door leaf in place.

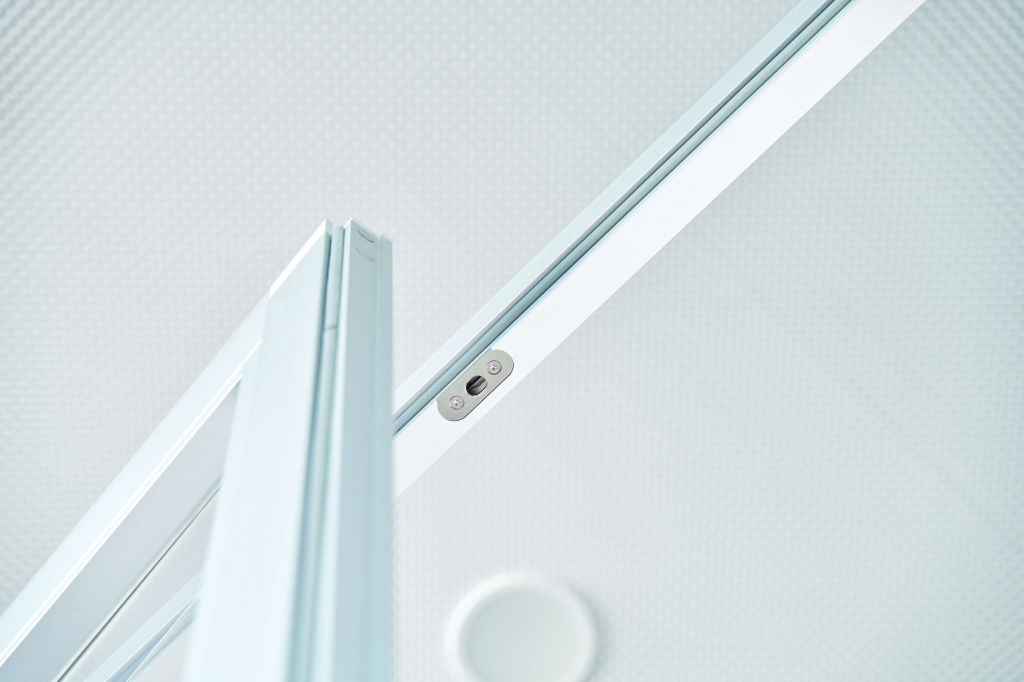

The strike plate is fastened to the Line 8 groove of the door frame and protects the aluminium profile of the outer frame.
A Double Access Door consists of an item Access Door 8 and a lockable inactive door leaf. Together, these elements create lockable access points that are large enough to allow the movement of particularly tall structures or wide objects.
The Double Access Door can also be opened and closed from both sides and features an all-round seal. The door can be integrated into a frame made of Line 8 profiles with ease.
item Double Access Door 8 is based on components that have been carefully coordinated to produce highly functional door solutions.
The strike plate is installed flush with the front edge of the outer door frame. Closed grooves need to be opened up accordingly.
Show more
Flush Bolt 40, Strike Plate
0.0.728.91

Accessoires / Service

Floor Strike D40 D11
Delivery unit
1 pce.
Article-No.
0.0.729.78
Flush Bolt 40
Delivery unit
1 set
Article-No.
0.0.728.27
Round Bar D10 M10 -1500
Delivery unit
1 pce., length 1500 mm
Article-No.
0.0.728.94
Door Profile Cap Set 8, Inactive Leaf
Delivery unit
1 set
Article-No.
0.0.727.54
Door Profile 8 80x40, natural
Delivery unit
cut-off max. 6000 mm
Article-No.
0.0.727.48
Profile Machining, Flush Bolt 40, Strike Plate
Delivery unit
1 pce.
Article-No.
0.0.733.00

Downloads

Assembly instruction(11 MB)
Flush Bolt 40, Strike Plate
0.0.728.91

Classifications

Classifications are industry-wide product data standards that are used, among other things, to support structured processing in ERP and e-business systems. Do you need the classification data for all item products for your e-procurement system? If so, please don’t hesitate to contact us.
eCl@ss 11.0
23190101
eCl@ss 5.0
23190101
eCl@ss 5.1
23190101
eCl@ss 6.0.1
23190101
eCl@ss 7.1
23190101
eCl@ss 8.0
23190101
UNSPSC 7.0
30171514
UNSPSC 9.0
30171514
customs tariff number
73269098
